5-1/2 TON AIR LIFT
In Stock
SKU
INT3596

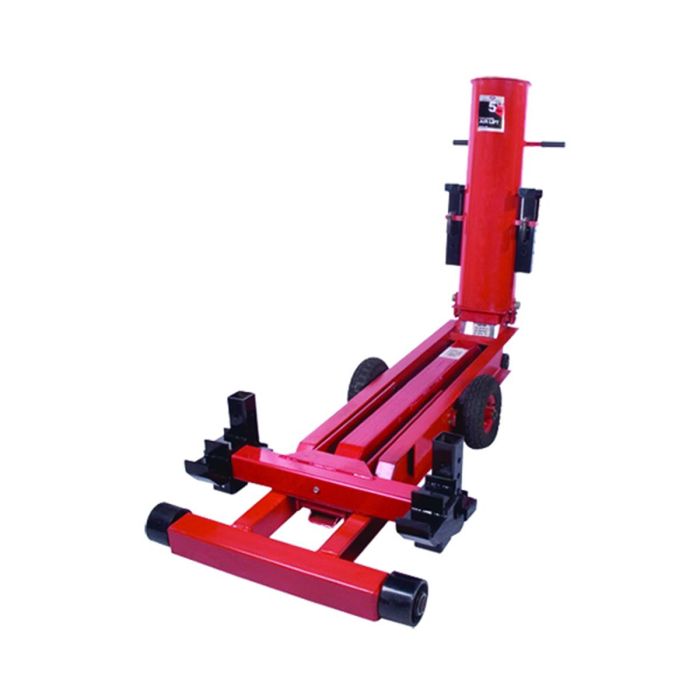

AFF - Air Lift Jack - 5.5 Ton Capacity - Long Reach
Features and Benefits:
- Color: Red/Black
- Capacity: 5.5 Ton
- Product Type: Air Lift Jack
- Power Type: Air
- Operation: Air Valve
- Minimum Height: 9.5"
- Maximum Height: 88.2"
- Chassis Length (in.): 84"
- Chassis Width: 36"
- Reach (in.): 13"
- Lift: 34.6"
- Saddle Diameter: 7" x 3"
- Saddle Spread (in.): 23" - 45"
- Handle Length (in.): 9.4"
- Working Air Pressure: 160PSI
- Weight: 730 Lbs.
- Wheels: Qty 2 - 8" Pneumatic Wheels, Qty 2 - 5" Steel Wheels
- Certification: ASME/PASE 2019
- Warranty: 1 Year
- Adapters Included: 2 Different Saddle Sizes & a Drop Axle Adapter
- Special Features: 3 Way Air Valve| Automatic Safety Lock
- Designed for heavy-duty low-profile vehicles that require a longer reach to be securely lifted at the vehicle front axle or frame and can also be used on the bumper.
- The scissor action design and full shop air operation (160 PSI) provide more lift height under low profile vehicles.
- Using its multiple saddle sizes and adjustments along with its standard drop-axle adapter it can lift from as low as 6-1/2" to a high 53-1/2" with a long 48" forward reach.
- Steel saddles adjust between 23" & 45" widths to accommodate a variety of vehicle applications.
- 48" forward reach (distance from cylinder to saddles).
- Two saddle sizes and drop axle adapter increase versatility.
- Three-way heavy-duty air valve for precision lifting.
- Automatic safety lock engages in five preset positions.
- Two large pneumatic wheels for easy maneuverability.
American Forge & Foundry features a wide range of specialty jacks for the trucking, agriculture, fleet, and military sectors. Each is designed for applications where extra capacity, added reach, or height may be required.
