Special low height 152" (12' 8") (Requires purchase of extra cables)
Symmetric arms
Automatic Arm Restraints
"Padded" Shut-Off Bar
Door Guards on Carriages
Single Point Lock Release
Direct-Drive Cylinders
Powder Coat Finish
Free 12 Piece Truck Adapter Set
Mounting Hardware Included
Shipping weight: 2,490 lb
5 Year Structural Warranty/2 Year Hydraulics Warranty
This part number for WILL CALL ONLY
The Atlas® PV series represents the absolute best value for the customer who demands a heavy duty professional grade two post lift at the lowest possible price. Atlas® has been manufacturing the PV series two post above ground lifts for over a decade. Thousands sold! Descriptions such as “bullet-proof”, built like a brick outhouse, tougher than nails, and other such euphemistic phrases are used every day to describe any of the Atlas® PV series models.

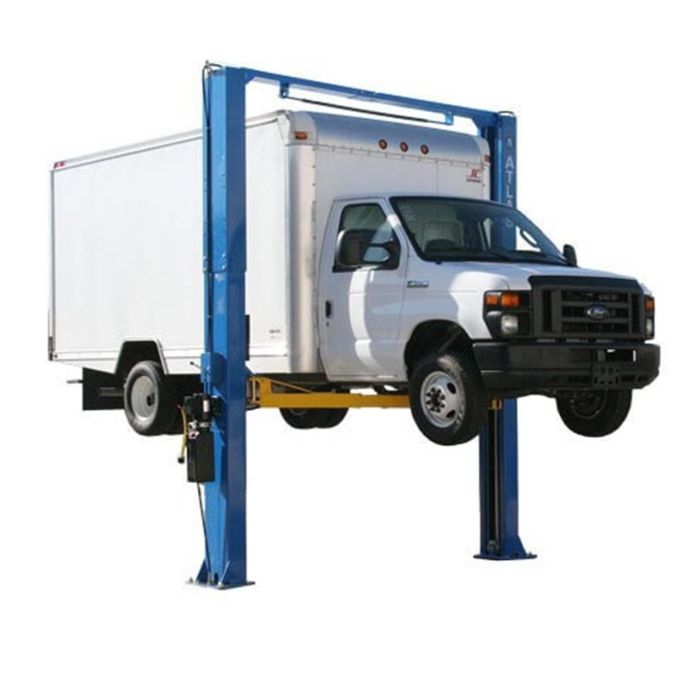

The Atlas® PV-15P is a commercial grade lift designed to accommodate both long wheel base trucks and passenger cars. The distance between the symmetrical columns is over 123" with a drive thru space of over 109". The extra distance between the symmetrical columns will allow the widest of vehicles to be lifted. The increased length of the symmetrical arms coupled with the additional height of the included peg style truck adapter set allows the operator to safely raise long wheel base trucks with a variety of running boards and frame configurations Lowest height setting requires purchase of additional, shorter, cables.
Atlas® ATTD-PV15PX Specifications:
Capacity: 15000 lbs
Overall Height: 165" (13' 9") or 177" (14' 9")
Special Height Setting: 152" (12' 8") (Requires Purchase of Extra Cables)
Overall Floor Width: 150 3/8" (12' 6 3/8")
Outside Columns: 139 1/8" (11' 7 1/8")
Inside Column Width: 122 5/8" (10' 2 5/8")
Drive Thru: 108 5/8" (9' 5/8")
Max Lift Height w/o Adapters: 75 1/8"
Max Lift height w/ Adapters: 86 1/8"
Minimum Arm Height: 7 1/4"
Column Size: 7 1/2" x 14 1/2"
Base of Column: 17 1/2" x 20 1/2"
Column Steel Thickness: 6mm
Arm Steel Thickness: 6mm
Motor/Electrical Requirement: 220volt Single Phase, 30 amp breaker required
Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
