5 Year Structural Warranty/2 Year Hydraulics Warranty
This part number for WILL CALL ONLY
The Atlas® PV series represents the absolute best value for the customer who demands a heavy duty professional grade two post lift at the lowest possible price. Atlas® has been manufacturing the PV series two post above ground lifts for over a decade. Thousands sold! Descriptions such as “bullet-proof”, built like a brick outhouse, tougher than nails, and other such euphemistic phrases are used every day to describe any of the Atlas® PV series models.

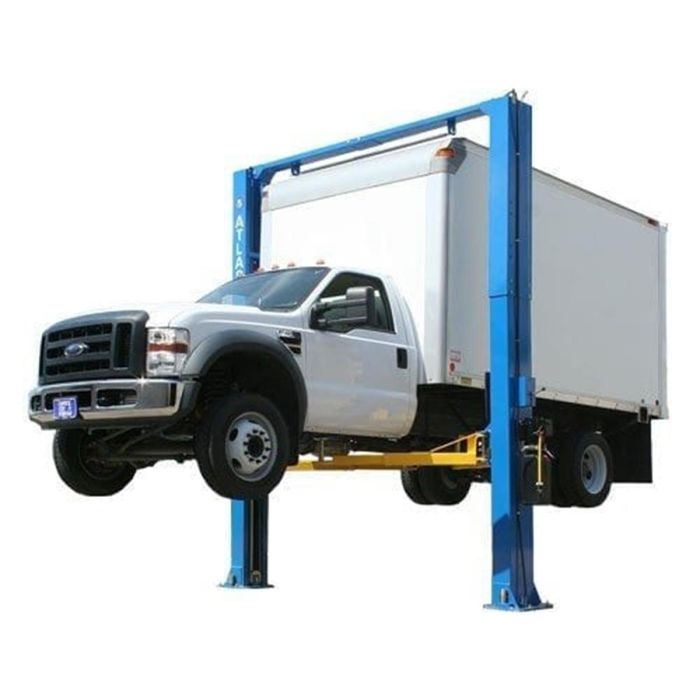

The Atlas® PV-12P is a commercial grade lift designed to accommodate long wheel base trucks. The low pad height on the PV-12PX allows the operator to lift both cars and trucks. The extra distance between the columns accomodates wider vehicles or vehicles with wide rearview mirrors. The extra height is perfect for tall vans and box trucks.
Atlas® ATPK-PV12PX Specifications:
Capacity: 12000 lbs
Overall Height: 174" (14' 6") or 198" (16' 6")
Overall Floor Width: 150 3/4" (12' 6 3/4")
Outside Columns: 139 1/4" (11' 7 1/4")
Inside Column Width: 123 1/2" (10' 3 1/2")
Drive Thru: 109 3/4" (9' 1 3/4")
Max Lift Height w/o Adapters: 72 1/2"
Max Lift height w/ Adapters: 81 1/2"
Minimum Arm Height: 4 1/2"
Column Size: 7 1/2" x 14 1/2"
Base of Column: 17 1/2" x 20 1/2"
Column Steel Thickness: 6mm
Arm Steel Thickness: 6mm
Motor/Electrical Requirement: 220volt Single Phase, 30 amp breaker required
Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
