10000 LB BASEPLATE LIFT (WILL CALL)
In Stock
SKU
ATEATPK-BP10000X
10000 LB BASEPLATE LIFT (WILL CALL)
Features and Benefits:
- 10,000 lb. capacity
- Overall height: 111 7/8" (9' 3 7/8")
- Four 3-stage arms
- Automatic Arm Restraints
- Single-Point Lock Release
- Powder Coat Finish
- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included
- Shipping weight: 1,695 lb.
- 5 Year Structural Warranty/2 Year Hydraulics Warranty
- This part number for WILL CALL ONLY

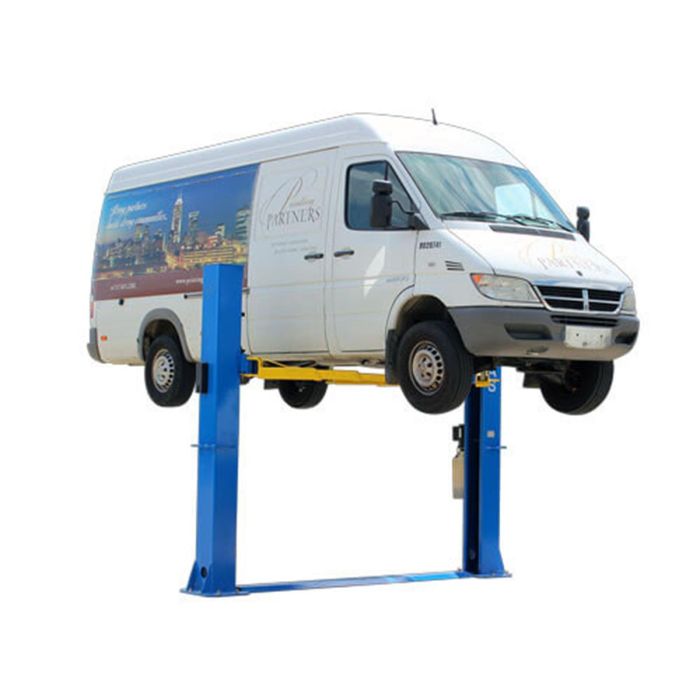

The Atlas® BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas® BP10000X incorporates the popular single point lock release columns have a middle welded support gusset that adds extra strength to the oversized columns. If you need to lift a one ton dually or a Smart Car and only have an 11 foot ceiling, this is the lift for your shop.
Atlas® BP10000X Specifications:- Capacity: 10000 lbs
- Overall Height: 111 7/8" (9' 3 7/8")
- Overall Floor Width: 139 1/8" (11' 7 1/8")
- Outside Column to Outside Column: 134 1/2" (11' 2 1/2")
- Inside Column Width: 112 1/8" (9' 4 1/8")
- Drive Thru: 100 3/4" (8' 4 3/4")
- Max Lift Height w/o Adapters: 77 3/8"
- Max Lift Height w/ Adapters: 85 7/8"
- Minimum Arm Height: 3 1/2"
- Column Size: 9 1/2" x 11"
- Base of Column: 17 1/2" x 21 1/2"
- Column Steel Thickness: 6mm
- Arm Steel Thickness: 6mm
- Motor/Electrical Requirement: 220volt Single Phase, 30 amp breaker required
- Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
- Shipping Weight: 1695 lbs.
- Adapter Heights: 4 Each 1.5", 2", 5"
- Arm Hole/Adapter Peg Size: 1 1/2"Accessories Available
More Information
| Brand | ATLAS AUTOMOTIVE EQUIPMENT |
|---|
