5 Year Structural Warranty/2 Year Hydraulics Warranty
This part number FREIGHT PREPAID

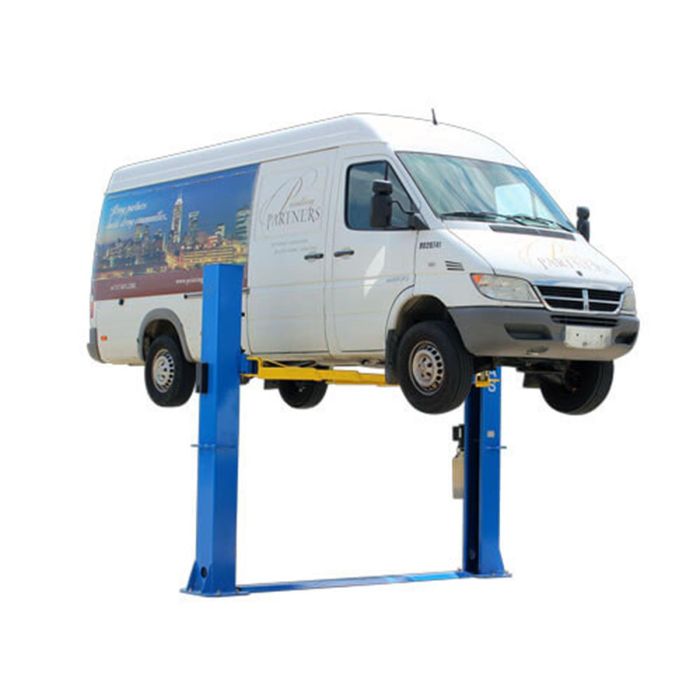

The Atlas® BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas® BP10000X incorporates the popular single point lock release columns have a middle welded support gusset that adds extra strength to the oversized columns. If you need to lift a one ton dually or a Smart Car and only have an 11 foot ceiling, this is the lift for your shop.
Atlas® BP10000X Specifications:
Capacity: 10000 lbs
Overall Height: 111 7/8" (9' 3 7/8")
Overall Floor Width: 139 1/8" (11' 7 1/8")
Outside Column to Outside Column: 134 1/2" (11' 2 1/2")
Inside Column Width: 112 1/8" (9' 4 1/8")
Drive Thru: 100 3/4" (8' 4 3/4")
Max Lift Height w/o Adapters: 77 3/8"
Max Lift Height w/ Adapters: 85 7/8"
Minimum Arm Height: 3 1/2"
Column Size: 9 1/2" x 11"
Base of Column: 17 1/2" x 21 1/2"
Column Steel Thickness: 6mm
Arm Steel Thickness: 6mm
Motor/Electrical Requirement: 220volt Single Phase, 30 amp breaker required
Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
Shipping Weight: 1695 lbs.
Adapter Heights: 4 Each 1.5", 2", 5"
Arm Hole/Adapter Peg Size: 1 1/2"Accessories Available
