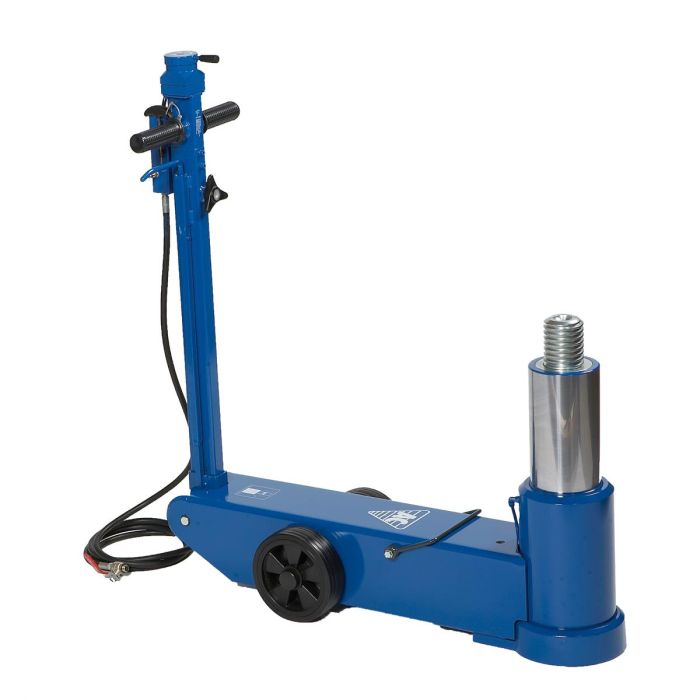

Air Hydraulic Jack 65 Ton
In Stock
SKU
AMN65-1APH
Air Hydraulic Jack 65 Ton
Features and benefits:
- Air hydraulic aircraft jack with extra long stroke
- Compact and slim design for easy operation and maneuverability.
- Telescopic handle increases the reach under the aircraft to 90.28 in and offers easy and safe operation
- The jack can be operated by either compressed-air, nitrogen from the aircraft wheels or a mobile nitrogen service cart
- Fitted with extension screw (3.15 in) for optimum use of the stroke.
- Rapid ram retraction without load.
- Safety features include manual lowering valve, safety overload valve and dead man’s release.
- Designed and manufactured according to the aircraft standards: EN1915:2001 and EN12312:2005.
Capacity: 143,000 lbs
Min Height: 12.36 inches
Max Height: 20.47 inches
Frame Length: 36.37 inches
Handle Length: 37.40-53.54 inches
Width: 7.87 inches
Width (with wheels): 12.20 inches
Air Supply: 130-174 psi
Air Consumption: 350 I/min
Weight: 207 lbs
More Information
| Brand | AME |
|---|
